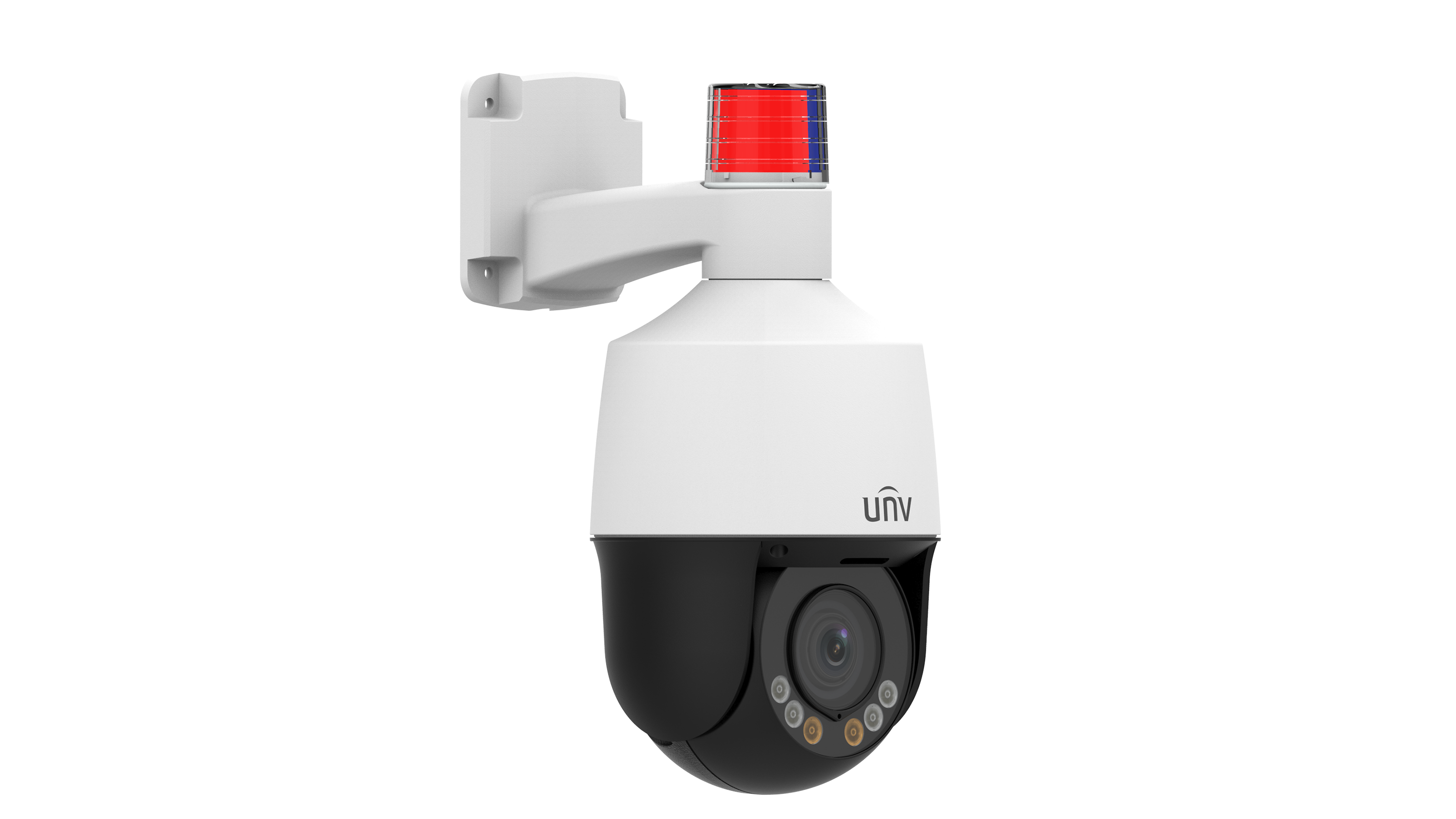

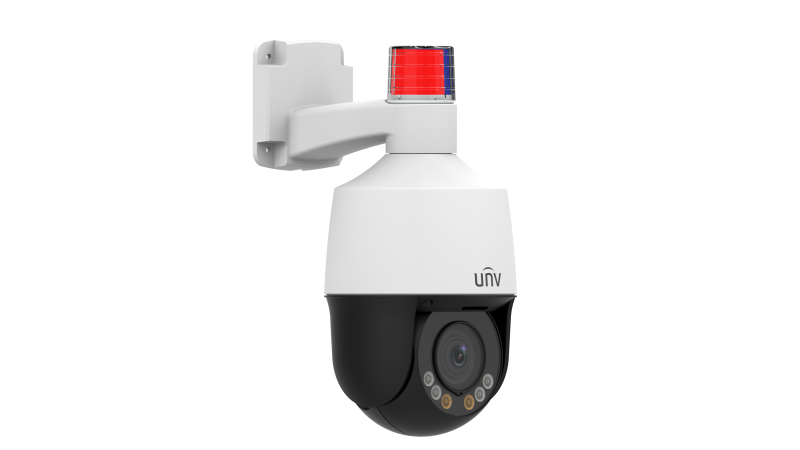

2 MP IP 2.7-13.5mm Motorize Lens Ses-Alarm Lighth. Speed Dome Güvenlik Kamerası Geri Dön
Ürün Kodu : IPC6312LFW-AX4C-VG
Kategori :
IP Kameralar >
CCTV Sistemleri
Ürün Açıklaması
• High quality image with 2MP, 1/2.7"CMOS sensor
• Ultra 265, H.265, H.264, MJPEG
• Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection
• automatic selection of best snapshots
• People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios
• LightHunter technology ensures ultra-high image quality in low illumination environment
• Up to 120 dB Optical WDR (Wide Dynamic Range)
• Built-in Mic & Speaker
• Smart IR, Up to 50 m (164 ft) IR distance and 10m (33 ft) warm light distance
• Micro SD, up to 256GB
• IP66 protection
• DC12V or PoE (IEEE 802.3af) power supply
Ürün Açıklaması
| IPC6312LFW-AX4C-VG | ||||||||
| Camera | ||||||||
| Sensor | 1/2.7" CMOS | |||||||
| Min. Illumination | Colour: 0.002Lux (F1.6, AGC ON) 0Lux with IR on | |||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||
| Shutter | Auto/Manual,1 to 1/100000 s | |||||||
| WDR | 120 dB | |||||||
| S/N | >52 dB | |||||||
| Lens | ||||||||
| Focal Length | 2.8 to 12 mm | |||||||
| Optical Zoom | 4X | |||||||
| Iris | F1.6 | |||||||
| Field of View (H) | 105.2° ~ 29.32° | |||||||
| Field of View (V) | 52.6° ~ 16.38° | |||||||
| Field of View (D) | 108.7° ~ 33.3° | |||||||
| Illuminator | ||||||||
| Illumination Distance (Warm Light) | 10 m (32.8 ft) | |||||||
| Illumination Distance (IR) | 50 m (164.0 ft) | |||||||
| Wavelength | 850 nm | |||||||
| DORI | ||||||||
| DORI Distance (Lens) | 2.8~12(mm) | |||||||
| DORI Distance (Detect) | 43.4m~186.2m(142.4ft~610.9ft) | |||||||
| DORI Distance (Observe) | 17.4m~74.5m(57.1ft~244.4ft) | |||||||
| DORI Distance (Recognize) | 8.7m~37.2m(28.5ft~122.1ft) | |||||||
| DORI Distance (Identify) | 4.3m~18.6m(14.1ft~61.0ft) | |||||||
| Video | ||||||||
| Privacy Mask | Up to 4 areas | |||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
| Frame Rate | Main Stream: 2MP (1920*1080), Max 30fps Sub Stream: 720P (1280*720), Max 30fps Third Stream: D1 (720*576), Max 30fps | |||||||
| Video Bit Rate | 128 Kbps to 16 Mbps | |||||||
| ROI | Support | |||||||
| Video Stream | Triple Streams | |||||||
| OSD | Up to 8 OSDs | |||||||
| PTZ | ||||||||
| Pan Range | 0° ~ 345° | |||||||
| Pan Speed | 0.1°/s ~ 50°/s | |||||||
| Tilt Range | -10° ~ 110° | |||||||
| Tilt Speed | 0.1°/s ~ 40°/s | |||||||
| Number of Presets | 256 | |||||||
| Preset Patrol | 16 patrols, up to 64 presets for each patrol | |||||||
| Patrol Stay Time | 120 s to 1800 s | |||||||
| Home Position | Support | |||||||
| Intelligent | ||||||||
| Exception Detection | Object Removed, Object Left Behind, Scene Change, Defocus Detection | |||||||
| Auto Tracking | Support, target filtering: human only | |||||||
| People Counting | Support People Flow Counting and Crowd Density Monitoring | |||||||
| Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) | |||||||
| Image | ||||||||
| Defog | Digital Defog | |||||||
| White Balance | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 | |||||||
| Digital Noise Reduction | 2D/3D DNR | |||||||
| Smart IR | Support | |||||||
| Flip | Normal, Flip Vertical, Flip Horizontal, 180° | |||||||
| HLC | Support | |||||||
| BLC | Support | |||||||
| Heatwave Reduction | N/A | |||||||
| Events | ||||||||
| Basic Detection | Motion Detection, Tampering Alarm, Audio Detection, Object Removed, Object Left Behind, Scene Change, Defocus Detection | |||||||
| General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication | |||||||
| Audio | ||||||||
| Audio Compression | G.711U, G.711A | |||||||
| Two-way Audio | Support | |||||||
| Suppression | Support | |||||||
| Sampling Rate | 16KHZ | |||||||
| Storage | ||||||||
| Edge Storage | Micro SD, up to 512 GB | |||||||
| Network Storage | ANR, NAS (NFS) | |||||||
| Network | ||||||||
| Protocols | SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS | |||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK | |||||||
| Client | EZStation, UNV-Link, UNV-Link Pro | |||||||
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ | |||||||
| Interface | ||||||||
| Built-in Mic | Support | |||||||
| Built-in Speaker | Support | |||||||
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet | |||||||
| Certification | ||||||||
| EMC | CE-EMC (EN55032:2015, EN55024:2010+A1:2015, EN55035:2017, EN61000-3-2:2014, EN61000-3-3:2013) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) | |||||||
| Safety | CE LVD (EN 62368-1:2014+A11:2017) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) | |||||||
| Environment | CE-ROHS (2011/65/EU;(EU)2015/863) | |||||||
| Protection | IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) | |||||||
| General | ||||||||
| Power | DC12V(±25%), PoE (IEEE 802.3af) | |||||||
| Power Consumption | MAX 15W | |||||||
| Power Interface | Ø5.5 mm coaxial power plug | |||||||
| Dimensions | 133 x 185 x 276 mm (5.2" x 7.3" x 10.9") (L x W x H) | |||||||
| Weight | 0.87 kg (1.92lb) | |||||||
| Working Environment | -20 ℃ to 60 ℃ (-4 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) | |||||||
| Storage Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) | |||||||
| Surge Protection | 2 KV | |||||||
| Reset Button | Support | |||||||
| Web Client Language | 22 Languages Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak | |||||||
