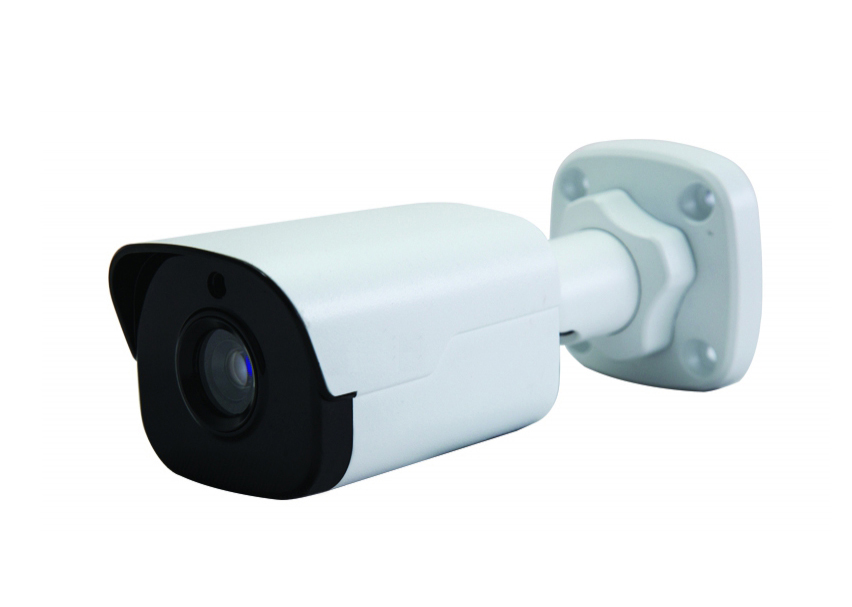

4 MP IP Ultra.265 4mm. Sabit lens 30m PoE TrueWDR SD Kart Bullet Akıllı Güvenlik Kamerası Geri Dön
Ürün Kodu : DEC3124ER3-DPF40
Ürün Açıklaması

  Optik
* Gündüz / gece işlevselliği

* Akıllı IR, 30 m'ye (98 ft) kadar IR mesafesi

* Daha yüksek ışık geçirgenliğine sahip optik cam pencere

* Kızılötesi geçirgenliğini artırmak için IR yansıma önleme penceresi

* 2D / 3D DNR (Dijital Gürültü Azaltma)



  Sıkıştırma
* Ultra 265, H.265, H.264, MJPEG

* Gömülü akıllı algoritma

* Üçlü akışlar

* 9:16 koridor biçimi




* ONVIF Uygunluğu



  Yapı
* Geniş sıcaklık aralığı: -35 ° C ila 60 ° C (-31 ° F ila 140 ° F)

* Geniş voltaj aralığı ±% 25

* IP67

* 3 eksenli

Ürün Açıklaması
  DEC3124ER3-DPF40 DEC3124ER3-DPF60
Camera
Sensor 1/3", 4.0 megapixel, progressive scan, CMOS
Lens 4.0mm@F2.0 6.0mm@F2.0
DORI Distance Lens Detect(m) Observe(m) Recognize(m) Identify(m)
4mm 90 36 18 9
6mm 135 54 27 13.5
Angle of View(H) 78.9° 49.9°
Angle of View (V) 39.6° 27°
Angle of View (O) 97.1° 61.4°
Adjustmentangle Pan: 0°~360° Tilt: 0°~90° Rotate:0°~360°
Shutter Auto/Manual, 1~1/100000 s
Minimum Illumination Colour:0.03Lux (F2.0, AGC ON)
0 Lux with IR on
Day/Night IR-cut filter with auto switch (ICR)
Digital noise reduction 2D/3D DNR
S/N >52dB
IR Range Up to 30m (98 ft) IR range
Defog Digital Defog
WDR 120dB
Video
Video Compression Ultra 265,H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main Profile, High Profile
Frame Rate Main Stream:4MP (2592×1520): Max. 20 fps,4MP (2560×1440): Max. 25 fps,3MP (2048×1520): Max. 30 fps;
Sub Stream:2MP (1920×1080): Max. 30 fps;
Third Stream:D1(720×576) : Max. 30fps
9:16 Corridor Mode Supported
HLC Supported
BLC Supported
OSD Up to 8 OSDs
Privacy Mask Up to 8 areas
ROI Up to 8 areas
Motion Detection Up to 4 areas
Smart
Behavior Detection Intrusion, cross line, motion detection
Intrusion Enter and loiter in a pre-defined virtual region
cross line Cross a pre-defined virtual line
motion detection Moving within a pre-defined virtual region
Recognition Face detection
Intelligent Identification Defocus, Scene Change, Object Left, Object Moving
Statistical Analysis People counting
General Function Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Storage
Edge Storage Micro SD, Up to 256 GB
Network Storage ANR
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP
Compatible Integration ONVIF(Profile S, Profile G, Profile T), API
Interface
Network 1 RJ45 10M/100M Base-TX Ethernet
General
Power 12 V DC±25%,PoE (IEEE802.3 af)
Power consumption: Max 6.5W
Dimensions (L × W × H) 157.3 × 62.4 ×63 mm(6.2” × 2.5” × 2.5”)
Weight 0.45 kg (0.99lb)
Working Environment -35°C ~ +60°C (-31°F ~ 140°F), Humidity :10%~95% RH(non-condensing)
Ingress Protection IP67
Reset Button Supported
