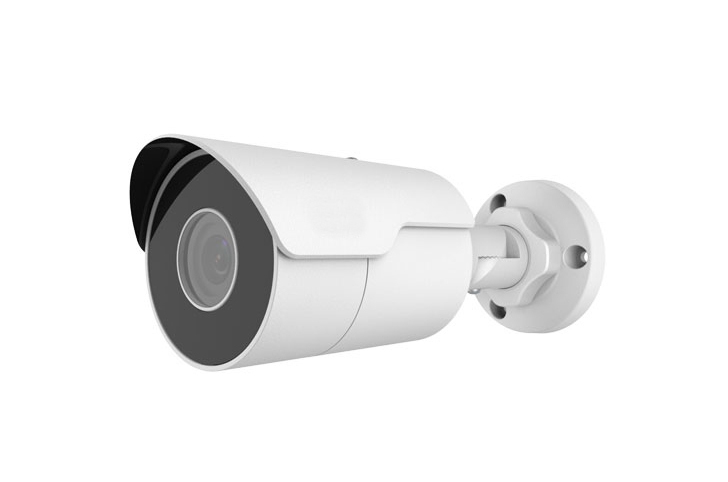

8 MP 4K IP Ultra.265 4 mm sabit lens 30m PoE TrueWDR Bullet Akıllı Güvenlik Kamerası Geri Dön
Ürün Kodu : DEC3128SR3-DPF40
Ürün Açıklaması
Ürün Açıklaması
  DEC3128SR3-DPF40 DEC3128SR3-DPF60
Camera
Sensor 1/2.5", 8.0 megapixel, progressive scan, CMOS
Lens 4.0mm@ F2.0 6.0mm@ F2.0
DORI Distance Lens Detect(m) Observe(m) Recognize(m) Identify(m)
4.0mm 72 28.8 14.4 7.2
6.0mm 108 43.2 21.6 10.8
Angle of View(H) 91.6° 54.2°
Angle of view(V) 47.2° 32.5°
Angle of view(O) 112.7° 66.7°
Adjustment Range Pan: 0°~360° Tilt: 0° ~ 90° Rotation: 0° ~ 360°
Shutter Auto/Manual, 1~1/100000 s
Minimum Illumination Colour: 0.001 Lux (F2.0, AGC ON)
0 Lux with IR on
Day/Night IR-cut filter with auto switch (ICR)
Digital noise reduction 2D/3D DNR
S/N >52dB
IR Range Up to 30m (98 ft) IR range
Defog Digital Defog
WDR 120dB
Video
Video Compression Ultra 265,H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main Profile, High Profile
Frame Rate Main Stream:8MP (3840*2160): Max. 15 fps,
Sub Stream:1080P (1920*1080): Max. 30 fps;
Third Stream:D1(720*576) : Max. 30 fps
9:16 Corridor Mode Supported
HLC Supported
BLC Supported
OSD Up to 8 OSDs
Privacy Mask Up to 8 areas
ROI Up to 8 areas
Motion Detection Up to 4 areas
Smart
Behavior Detection Intrusion, cross line, motion detection
Intrusion Enter and loiter in a pre-defined virtual region
cross line Cross a pre-defined virtual line
motion detection Moving within a pre-defined virtual region
Recognition Face detection
Intelligent Identification Defocus, Scene Change, Object Left, Object Moving
Statistical Analysis People counting
General Function Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Network
Protocols IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP, RTP,RTSP,RTCP,DNS,DDNS,NTP,FTP,UPnP,HTTP,HTTPS,SMTP, SSL
Compatible Integration ONVIF(Profile S, Profile T), API
Interface
Network 1 RJ45 10M/100M Base-TX Ethernet
General
Power 12 V DC±25%, PoE (IEEE802.3 af)
Power consumption: Max 8 W
Dimensions (L × W × H) 191.3×72.6×70.9mm (7.5”×2.9”×2.8”)
Weight 0.5 kg (1.1 lb)
Working Environment -30℃ ~ 60℃ (-22°F ~ 140°F), Humidity : 10%~90% RH(non-condensing)
Ingress Protection IP67
